LoRawan & BLEautonomous current sensor IoT

IoT solutions Energy harvesting

Autonomous sensor

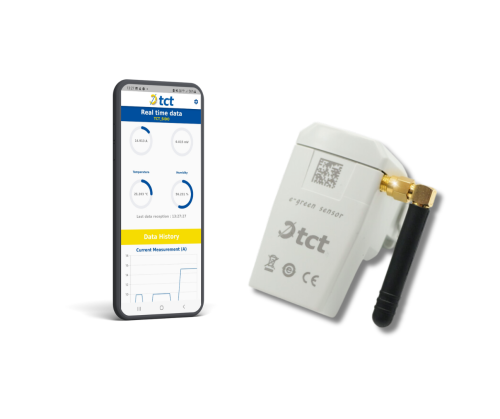

LoRawan & BLE autonomous current sensor IoT

Functions

Our self-powered E-green sensor plays a vital role in the Internet of Things (IoT) by monitoring and measuring electrical current as well as temperature using a thermocouple in various equipment and systems, all without requiring an external power source, thanks to our induction energy harvesting solution. Its main function is to gather precise data on electrical consumption, which offers several significant advantages.

Firstly, these sensors measure current in real-time, enabling continuous monitoring of electrical loads. This allows users to detect sudden current variations, overloads, or performance drops, which can be essential for preventive maintenance, especially in motor monitoring applications.

Furthermore, the data collected by these sensors is transmitted to centralized IoT platforms through low-power communication protocols such as BLE and LoRaWAN. These platforms then process, analyze, and make this data accessible to users through online dashboards or mobile applications. This connectivity enables remote tracking, which can be particularly advantageous for fleet device management, infrastructure monitoring, or regulatory compliance.

Lastly, the use of self-powered e-green current sensors improves the efficiency of your electrical equipment. This can reduce energy costs, minimize greenhouse gas emissions, and extend the lifespan of electrical equipment by detecting potential issues earlier.

TCT's self-powered E-green sensor for IoT measures electrical current, transmits data remotely, and enables efficient energy consumption management, making it a key component for various industrial IoT applications, preventive maintenance, and real-time monitoring.

Download the E-Green Monitor app to control your current sensor using BLE.



Discover the first podcast (in French) from our partner INTEGRAL SYSTEM on the data collection in the industry and the predictive maintenance. With the participation of Alexande Decombejean, TCT sales manager and Stéphane Blanc, Advantech South Europe sales manager.

The podcast comprises two parts:
- Data collection in the industry
- Predictive maintenance on rotating equipment

Watch the podcast

Interested in our products? Contact our distributors

Technical characteristics

  • Self-powered
  • BLE & LoraWan communication
  • Maximum cable section on one phase 50mm²
  • Current measurement range 0A - 200A
  • Current measurement accuracy 1%
  • Operating temperature range -20°C to 55°C

Key strengths

  • Non intrusive
  • No battery
  • No maintenance
  • Communication BLE & LoraWan
